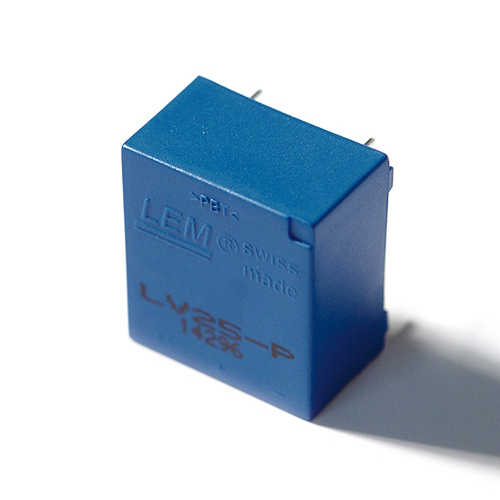

LV25
For voltage measurements, a current proportional to the measured voltage must be passed through an external resistor R1, which is selected by the user and installed in series with the primary circuit of the transducer. Suitable for measuring nominal voltages from 10 V to up to 1500 V (depending on models). To be mounted on PCB.
Model details
LV 25-P
10 mARMS nominal. Suitable for measuring nominal voltages from 10 V to up to 500 V
- Series
-
LV25
- Measurement
-
電流センサ
- Nominal Value
-
0.01 A
- Measuring Range
-
0.014 A
- Second. Nominal Signal
-
電流
- Second. Nominal Signal Value
- 瞬時 25 mA
- Primary Signal
-
AC + DC
- Supply Voltage
-
外部DCバイポーラ
- Supply Voltage Range
- 12 - 15 V
- Accuracy
- 0.9 %
- Op. Temperature
- 70 °C
- 技術
-
クローズドループ・ホール効果
- Mounting
-
基板
- アプリケーション
-
ドライブ電源再生可能エネルギー溶接
FRONT
BACK
LEFT
RIGHT
ダウンロード
Relative information
シリーズ
同じシリーズの製品
LV 25-P/SP5
10 mARMS nominal. Suitable for measuring nominal voltages from 10 V to up to 1500 V. -40°C to +85°C. 4.2 kVRMS/50 Hz/1 min as isolation test voltage (4 kVDC/5 min).
