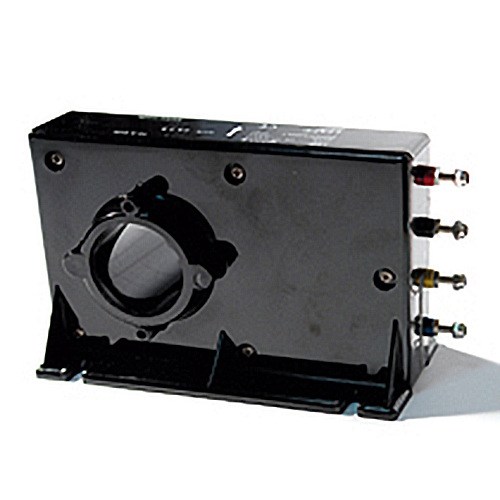

CD
For detection of differential current between 2 primary conductors carrying opposite currents, with galvanic isoltaion between the primary circuit and the secondary circuit
Model details
CD 1000-S/SP8
- Series
-
CD
- Measurement
-
Current
- Nominal Value
-
1200 A
- Measuring Range
-
3000 A
- Second. Nominal Signal
-
Other
- Second. Nominal Signal Value
- Switch Solid State
- Primary Signal
-
DC
- Supply Voltage
-
External DC Unipolar
- Supply Voltage Range
- 48 - 48 V
- Accuracy
- 15 %
- Op. Temperature
- -25 °C / 70 °C
- Technology
-
Closed loop Fluxgate C type
- Mounting
-
Panel
- Applications
-
Traction
FRONT
BACK
LEFT
RIGHT
