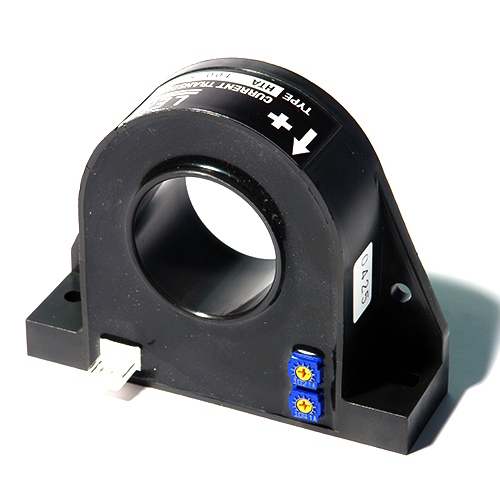

HTA Family
Compact current sensors for AC and DC currents from 100 to 1000 ARMS nominal
HTA - Current sensors
The HTA current sensor family is purpose-built for the precise measurement of DC, AC, or pulsed currents while maintaining galvanic isolation between the primary and secondary circuits.
Current sensors of the HTA family operate efficiently with a bipolar power supply of +/- 15V. They provide an instantaneous voltage output of +/- 4V and offer a bandwidth reaching up to DC 50 KHz.
These sensors are designed with a round aperture for current measurement and are founded on open-loop Hall effect technology, rendering them particularly suitable for a wide array of industrial applications.
HTA – Features and benefits
Features
- Open loop transducer using Hall effect
- Panel mounting-Horizontal or Vertical
- Insulating plastic case recognized according to UL 94-V0
Main characteristics
- Very good linearity
- Very good accuracy
- Low temperature drift
- Wide frequency bandwidth
- Very low insertion losses
- High immunity to external interference
- Current overload capability
- Low power consumption
Typical applications
The HTA sensors are tailor-made for the industrial domain, and they can be effectively employed in a variety of applications, including:
- AC variable speed drives and servo motor drives
- Static converters for DC motor drives
- Battery supplied applications
- Uninterruptible Power Supplies (UPS)
- Switched Mode Power Supplies (SMPS)
- Power supplies for welding applications
LEM HTA – Download & Technical Characteristic
| Product | Order | Document | Primary nominal RMS voltage | Supply Voltage range | Op. Temperature |
|---|---|---|---|---|---|
| HTA 100-S | Datasheet 3D | 100 A | 15 to 15 | -25 to 85°C | |
| HTA 200-S | Datasheet 3D | 200 A | 15 to 15 | -25 to 85°C | |
| HTA 250-S/SP3 |
| Datasheet | 250 A | 15 to 15 | -25 to 70°C |
| HTA 300-S | Datasheet | 300 A | 15 to 15 | -25 to 85°C | |
| HTA 400-S | Datasheet | 400 A | 15 to 15 | -25 to 85°C | |
| HTA 500-S | Datasheet | 500 A | 15 to 15 | -25 to 85°C | |
| HTA 500-S/SP4 |
| Datasheet | 500 A | 15 to 15 | -25 to 70°C |
| HTA 600-S | Datasheet | 600 A | 15 to 15 | -25 to 85°C | |
| HTA 1000-S | Datasheet | 1000 A | 15 to 15 | -25 to 85°C | |
| HTA 1000-S/SP9 |
| Datasheet | 1000 A | 15 to 15 | -25 to 70°C |
HTA Sensors – ASK FOR SAMPLES / QUOTATIONS
Looking to receive samples or a quotation? Please click on the contact button below and provide us with the information you need on this product series. Our sales team will get back to you shortly.
