LA 306, LAC
DC, AC pulse currents' measurements of 300 ARMS to 400 ARMS nominal with galvanic isolation.

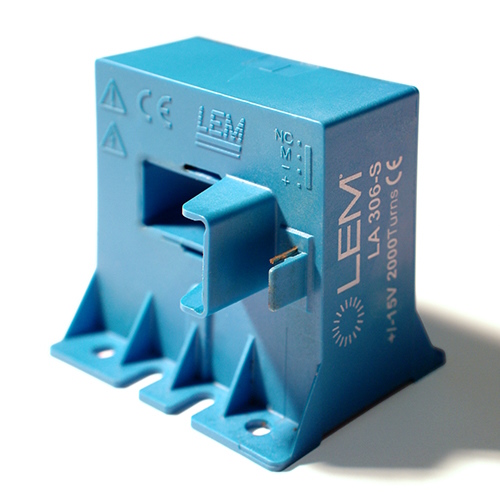

LA 306, LAC – Current Sensors
The LA 306 and LAC families closed-loop Hall effect current sensors are meticulously engineered for precise measurements of direct current (DC), alternating current (AC), and pulse currents, with nominal values ranging from 300 to 400 Arms. One significant advantage of these sensors is their ability to provide galvanic isolation, ensuring safety and accuracy in various applications.
For seamless integration into systems, both LA 306 and LAC current sensors are intended for panel mounting, featuring a primary conductor aperture measuring 30 x 13 mm.
The primary distinction between these two product families lies in their application domains. LAC is purpose-designed for railway applications, serving both fixed installations and onboard trains. In contrast, LA 306 is tailored for industrial applications, making it suitable for a wide range of industrial contexts where precise current measurement with galvanic isolation is paramount.
LA 306, LAC – Features and benefits
Main characteristics
- Closed loop (compensated) current transducer using the Hall effect
- Insulating plastic case recognized according to UL 94-V0
Benefits
- Excellent accuracy
- Very good linearity
- Low temperature drift
- Optimized response time
- Wide frequency bandwidth
- No insertion losses
- High immunity to external interference
- Current overload capability
Typical applications
As mentioned earlier, LA 306 is tailored for industrial applications and will suit the following applications, among other:
- AC variable speed drives and servo motor drives
- Static converters for DC motor drives
- Battery supplied applications
- Uninterruptible Power Supplies (UPS)
- Switched Mode Power Supplies (SMPS)
- Power supplies for welding applications
On the other hand, LAC components can be used in railway applications such as:
- Single or three phases inverters
- Propulsion and braking choppers
- Propulsion converters
- Auxiliary converters
- Battery chargers
LEM LA 306, LAC – Download & Technical Characteristic
| Product | Document | Primary nominal RMS voltage | Supply Voltage range | Op. Temperature |
|---|---|---|---|---|
| LA 306-S | Datasheet 3D | 300 A | 15 to 15 | -40 to 85 °C |
| LA 306-S/SP1 | Datasheet | 400 A | 15 to 15 | -40 to 85 °C |
| LA 306-S/SP2 | Datasheet | 300 A | 24 to 24 | -40 to 75 °C |
| LAC 300-S | Datasheet 3D | 400 A | 15 to 15 | -40 to 85 °C |
| LAC 300-S/SP1 | Datasheet 3D | 200 A | 15 to 15 | -40 to 85 °C |
| LAC 300-S/SP10 Cable output (600 mm) | Datasheet 3D | 300 A | 24 to 24 | -40 to 85 °C |
| LAC 300-S/SP2 | Datasheet | 300 A | 15 to 15 | -40 to 85 °C |
| LAC 300-S/SP3 | Datasheet | 400 A | 15 to 15 | -40 to 85 °C |
| LAC 300-S/SP4 | Datasheet | 300 A | 24 to 24 | -40 to 85 °C |
| LAC 300-S/SP5 | Datasheet | 200 A | 24 to 24 | -40 to 85 °C |
