DVC-UI

LEM makes the voltage measurement more compact, 131.6 cm3 total volume, Fully-isolated nominal measurement of unipolar +1000 V DC, pulsed, Compact, light (57 g) and robust package, Panel mounting, Rail DIN mounting adaptor as an option, Instantaneous unipolar 4-20 mA current output, 4.2kV as insulation test voltage, Meets latest industrial standards as well as IRIS requirements for rail traction applications

Model details

DVC 1000-UI

Unipolar +1000 V DC nominal, Overall accuracy: +/- 1.7 % from -40°C to +85°C, 17 us response time, 4-20 mA instantaneous current output @ 0...+1000 V, Unipolar voltage measurement, Unipolar + 15 to +24 volt power supply

Series
DVC-UI
Measurement
Voltage
Nominal Value
1000 V
Measuring Range
1000 V
Second. Nominal Signal
Current
Second. Nominal Signal Value
Instantaneous Unipolar 4-20mA
Primary Signal
AC + DC
Supply Voltage
External DC Unipolar
Supply Voltage Range
15 - 24 V
Accuracy
1.7 %
Op. Temperature
-40 °C / 85 °C
Technology
Isolation Amplifier
Mounting
DIN rail
Panel
Applications
Drives
Power Supplies
Renewable Energies
Traction
Welding

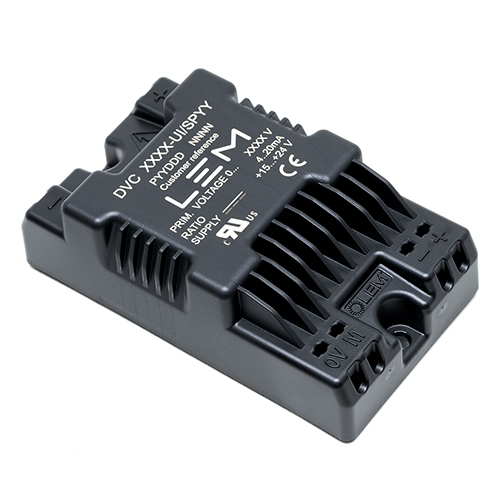

DVC 1000-UI
FRONT
BACK
LEFT
RIGHT
