Split Core Current Transducers for isolated DC & AC currents measurements from 200 ARMS up to 2000 ARMS nominal. 3 sizes of rectangular apertures. Compact sizes.,Dual supply +/- 12 to +/- 15 Volts. Instantaneous voltage output

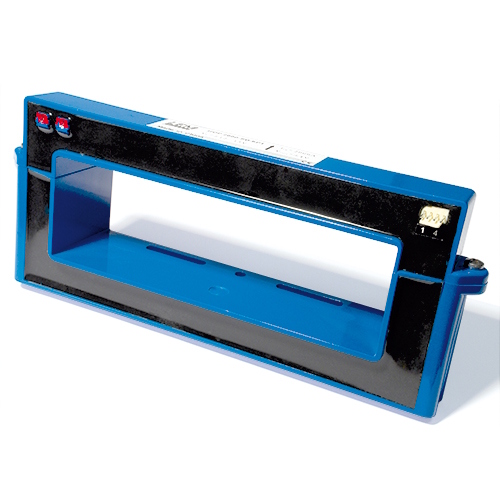

HOP 1500-SB
1500 ARMS nominal. Split core with rectangular aperture 104 x 40 mm
- Series
-
HOP
- Measurement
-
Current
- Nominal Value
-
1500 A
- Measuring Range
-
3000 A
- Second. Nominal Signal
-
Voltage
- Second. Nominal Signal Value
- Instantaneous 4 V
- Primary Signal
-
AC + DC
- Supply Voltage
-
External DC Bipolar
- Supply Voltage Range
- 12 - 15 V
- Accuracy
- 2 %
- Op. Temperature
- -10 °C / 70 °C
- Technology
-
Open loop Hall effect
- Mounting
-
On primary fasteningPanel
- Applications
-
DrivesPower SuppliesRenewable EnergiesSmart GridWelding
