LT100S&T

Closed Loop Hall effect. DC, AC pulse currents' measurements of 100 ARMS nominal with galvanic isolation. Compact design. To be panel mounted. Aperture 15 mm diameter for the primary conductor crossing. Excellent accuracy, good response time, Current output, -40°C to + 70°C. Dual supply +/- 12 to +/- 18V.

Model details

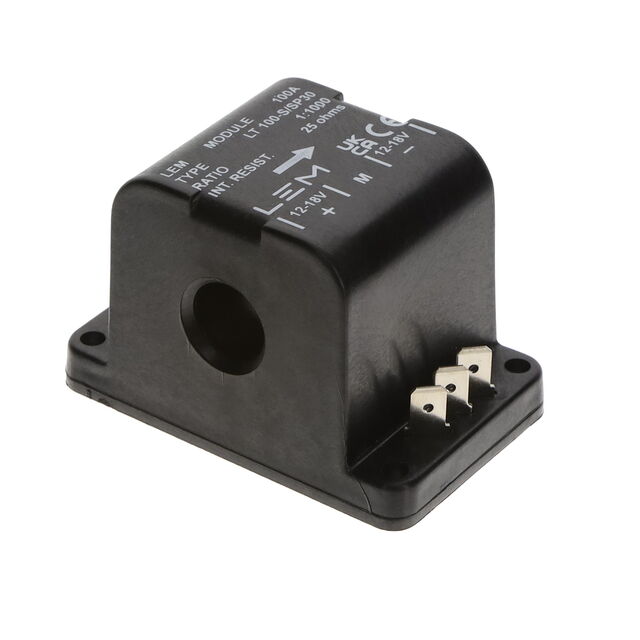

LT 100-S/SP30

100 ARMS nominal, For traction

Series: LT100S&T
Measurement: Current
Nominal Value: 100 A
Measuring Range: 200 A
Second. Nominal Signal: Current
Second. Nominal Signal Value: Instantaneous 100 mA
Primary Signal: AC + DC
Supply Voltage: External DC Bipolar
Supply Voltage Range: 12 - 18 V
Accuracy: 0.5 %
Op. Temperature: -40 °C / 70 °C
Technology: Closed loop Hall effect
Mounting: Panel
Applications: Traction
